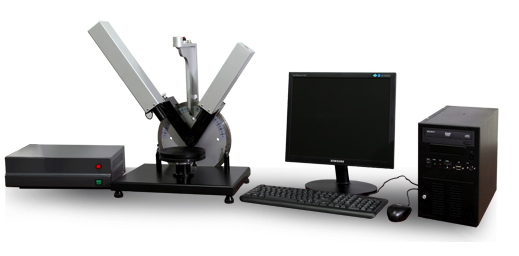

OPT-S6000 Ellipsometers
STANDARD FEATURES
- Excellent accuracy and repetition
- Widest variable angle (20°-90°)
- Multi wavelength VIS, NIR up to (5 wavelengths)
- Auto change wavelenght for easy operation
- A second laser for easy alignment and accuracy
- Measurement speed is less than 1 sec.
- Large sample stage
- User friendly software and materials library
- Hundreds of materials information in material library
TECHNICAL SPECIFICATIONS
- Standard wavelength 635 nm
- Optional wavelength 470 nm, 532 nm, 785 nm, 1064 nm, 1310 nm
- Thickness range of transparent films 0 - 6000 nm
- Thickness range of absorptive films 0 - 6000 nm
- Accuracy of refractive index measurement ± 0.001
- Accuracy of film thickness measurement ± 0.1 nm for SiO2 standard sample
- Stability without compensator ± 0.01° in Delta
- Measurement time less than 1 sec
- Sample alignment Second laser alignment with correction unit
- Sample stage adjustments tilt and height
- Range of angle 20 - 90°
- Angle steps 5° ± 0.01°
OPTIONS
- Wavelenghts 470 nm, 532 nm, 785 nm, 1064 nm, 1310 nm
- Micro Spotsize
- Wafer Maping
- Automated Angle of Incidence 20 - 90°
- Motorized XY stage
- Liquid Cell
- CCD image camera
- Heater
